Fan Set PLUG 10000-15000 m3/h, 560/5,5kW/4p AC

Fan Set PLUG 10000-15000 m3/h, 560/5,5kW/4p AC
Fan Set PLUG 10000-15000 m3/h, 560/5,5kW/4p AC
Fan Set PLUG 10000-15000 m3/h, 560/5,5kW/4p AC
Fan Set PLUG 10000-15000 m3/h, 560/5,5kW/4p AC
Fan Set PLUG 10000-15000 m3/h, 560/5,5kW/4p AC
Fan Set PLUG 10000-15000 m3/h, 560/5,5kW/4p AC
Fan Set PLUG 10000-15000 m3/h, 560/5,5kW/4p AC
Coils
Number of rows 4
Fan sets
Engine power (kW) 5.5
Airflow (m3/h) 10000-15000
Fan diameter (mm) 560
Engine type AC
  • Stock: In Stock
  • Model: 1-2-0213-3024
Based on 0 reviews. - Write a review
3,121.58zł
Ex Tax: 2,537.87zł
Add to Cart
Buy Now Ask Question
Add to Wish List Compare this Product

Description

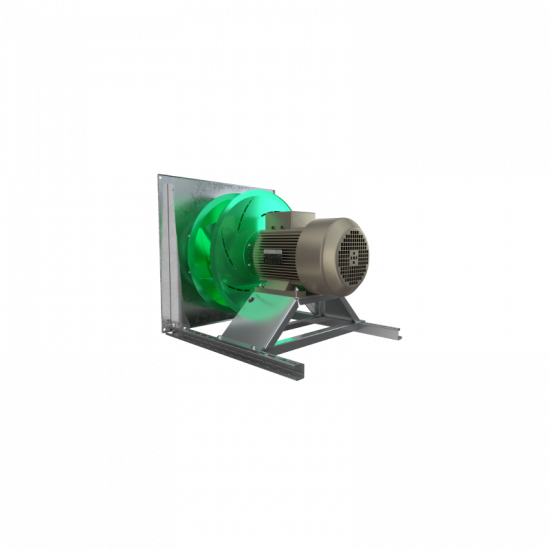

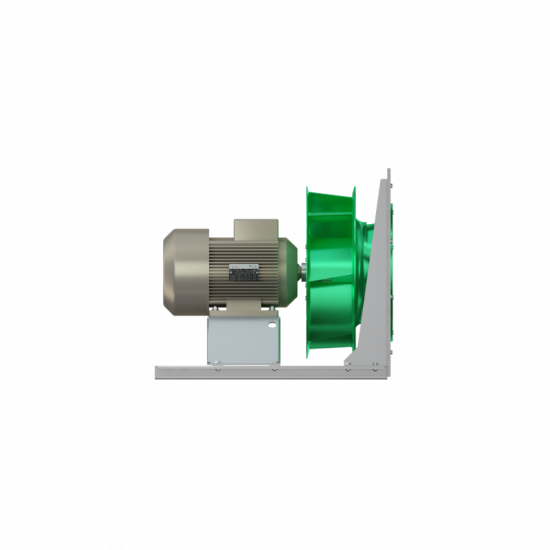

Fan and motor mounted on common housing, separated from AHU casing by set of rubber vibration absorbing mounts.

Motors of TEFC type (Totally Enclosed, Fan-Cooled).

Motors fitted for IEC standard.

Variable Frequency Drive (VFD) – standard equipment of the fan-set.


Available Energy classes: IE2
Rated voltage: 3x230V AC
Motor winding insulation class: F (fitted for VFD operations).
Bearings lifetime: L10= 20000h/ L50 = 100000h.
Protection degree: IP55.
Maximum working ambient temperature: 60°C.
