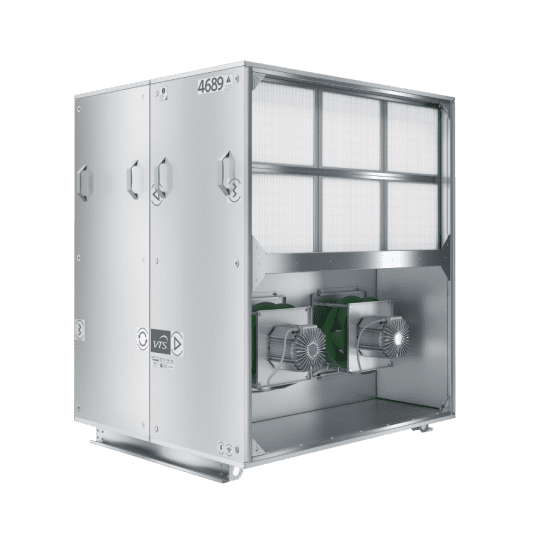

VENTUS Compact floor mounted, airflow: 3000 m³/h, EP: 250 Pa

VENTUS Compact floor mounted, airflow: 3000 m³/h, EP: 250 Pa
VENTUS Compact floor mounted, airflow: 3000 m³/h, EP: 250 Pa
  • Stock: In Stock
  • Model: 8-A90-18-2V030-00006
11,339.37zł
Ex Tax: 9,219.00zł

Description

The compact units in the floor-mounted version are intended for installation in technical rooms as well as outside the building.

The units are made of mineral wool insulation panels covered with Aluzinc sheets (AZ 150). The panels are attached to a steel supporting structure that ensures the rigidity of the entire unit.

The units are equipped with:
- rotary heat wheel
- EC motors
- MINI - PLEAT filters
- multifunctional controls

The units are configured and ready for operation immediately after connecting (Plug&Play). The compact units in the suspended version are equipped with a rotary heat wheel, ensuring heat recovery efficiency of 86%. The multi-fan assembly of the fan wall type ensures minimal energy consumption and optimal device operating parameters.

PARAMETERS:

External pressure 250 Pa

Exhaust airflow 3000 m³/h

Supply airflow 3000 m³/h

Insulation Polyurethane Foam

Specific Fan Power (Winter) 1.81 kW / m³ / s

Mounting type Floor mounted

Type of heat recovery Rotary wheel

AHU type Supply-exhaust

Side version R

Functions C

Filters class F7

CHILLED WATER COIL

Number of rows

6

MediumPropylene
Air Velocity2.32
Pressure Drop Wet / Dry Wet130 Pa

ROTARY WHEEL

Pressure Drop Wet / Dry Wet234 Pa
